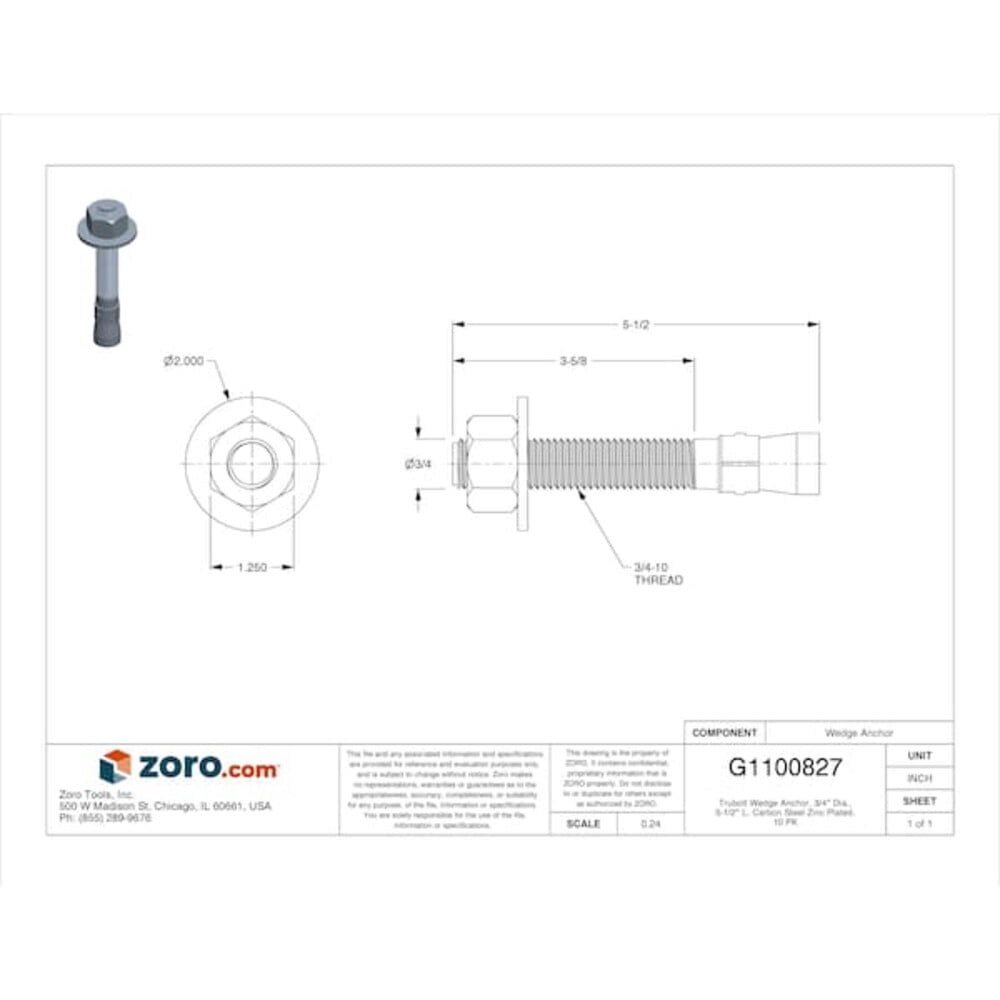

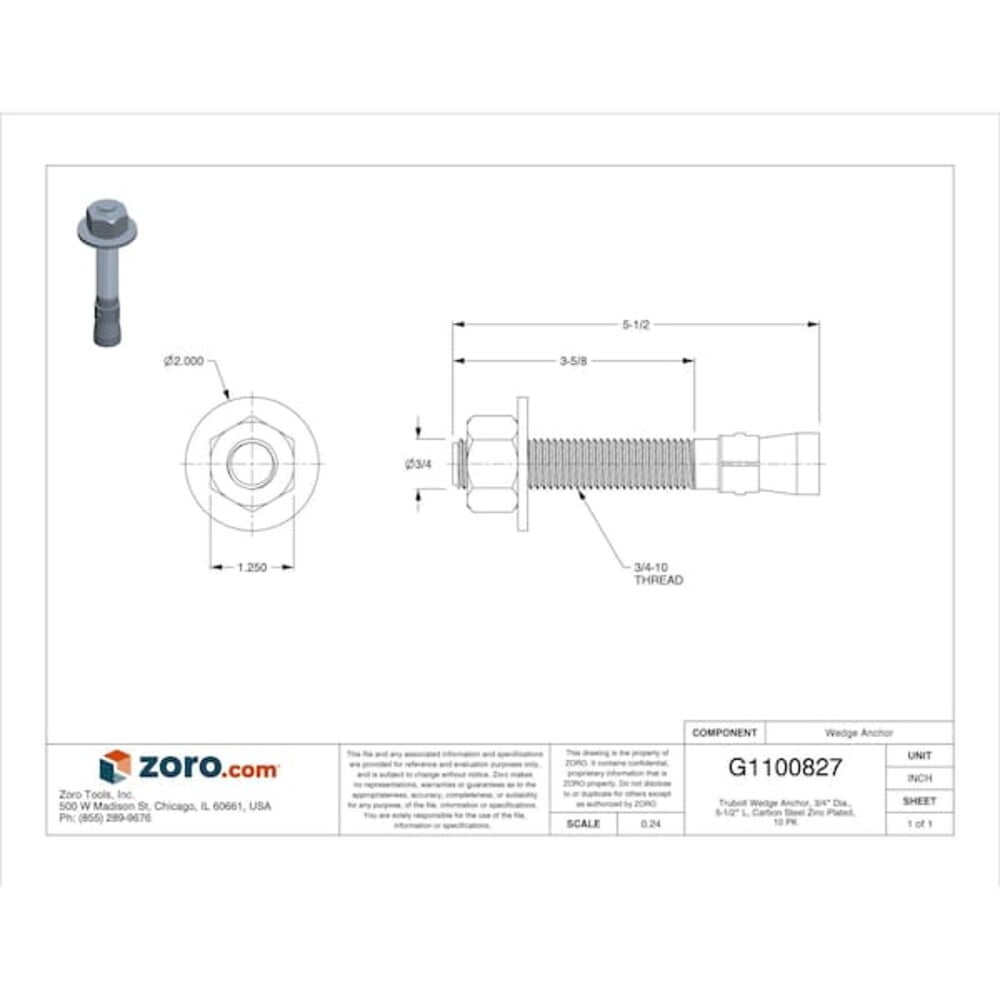

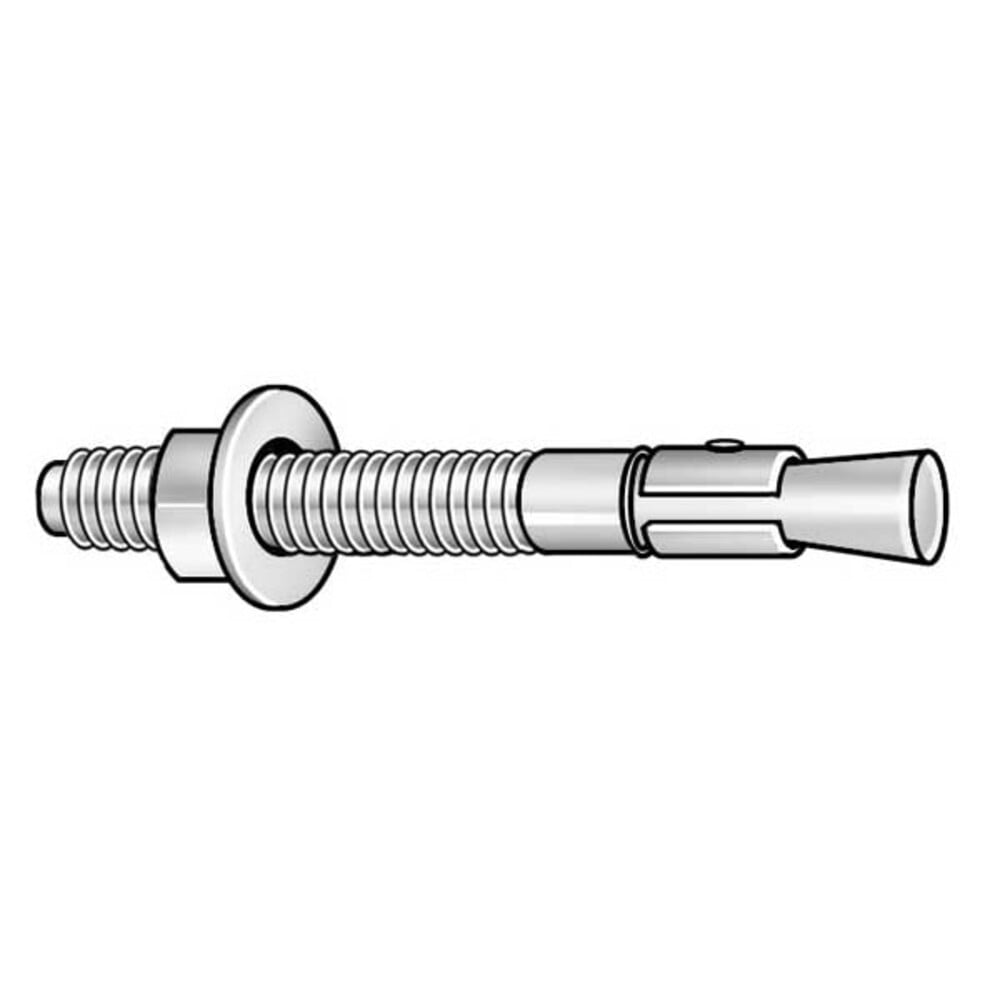

Trubolt Wedge Anchor, 3/4" Dia., 5-1/2" L, Carbon Steel Zinc Plated, 10 PK WS-3454
Product details
| Management number | 230993488 | Release Date | 2026/06/18 | List Price | US$25.17 | Model Number | 230993488 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Wedge Anchor, System of Measurement Inch, Anchor Diameter 3/4 in, Thread Size 3/4 In.-10, Overall Length 5 1/2 in, Thread Length 3 5/8 in, Material Steel, Material Grade/Class Not Graded, Finish Zinc Plated, Compatible Material Concrete, Drill Bit Size 3/4 in, Minimum Installation Depth 3 1/2 in, Minimum Material Thickness 6 in, Ultimate Shear Strength (4,000 psi Concrete) 13,720 lb, Ultimate Tension Strength (4,000 psi Concrete) 10,840 lb, Wedge Anchor Type Wedge Anchor, Seismic Approved No This item is banned in the following states: PR
- Anchor Diameter:3/4"
- Drill Bit Size:3/4 in
- Embedment In Concrete:3 1/4 in
- Finish:Zinc Plated
- ICC Approved for Cracked Concrete:No
- ICC Approved for Un-Cracked Concrete:Yes
- Includes:Nut, Washer
- Industry Standards:A-A-1923A Type 4
- Item:Wedge Anchor
- Manufacturer Location:Globally Sourced
- Material Grade/Class:Not Graded
- Material Grade:Not Graded
- Material Quality Standards:ACI 355.2
- Material:Carbon Steel
- Maximum Installation Torque:110 ft-lb
- Maximum Material Thickness:1-1/2"
- Maximum Ultimate Shear Strength:13,720 lb
- Minimum Installation Depth:3-1/4"
- Minimum Installation Torque:110 ft-lb
- Overall Length:5-1/2"
- Seismic Approved:No
- Series:Trubolt/Trubolt+
- Sub-Brand:Trubolt
- System of Measurement:Inch
- Thread Length:3 5/8 in
- Thread Size:3/4"-10
- Thread Style:Fully Threaded
- Thread:Fully Threaded
- Ultimate Pullout (Lb.):10,840 lb
- Ultimate Shear (Lb.):13,720 lb
- Ultimate Shear Strength (4,000 psi Concrete):13,720 lb
- Ultimate Tension Strength (4,000 psi Concrete):10,840 lb
- Wedge Anchor Type:Wedge Anchor
| Hardware anchor type | Concrete |
|---|---|
| Rec. use | Concrete |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Brand | Red Head |
| Color | Silver |
| Count | 1 |
| Accessories | Nut, Washer |
| Model | WS-3454 |
| Has written warranty | No |
